Monkey 88cc High Revolution Big Bore Kit TYPE 3 for 12V Product # 215588
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail
◆Compression ratio 9.7:1
◆Displacement: 88cc
◆Bore diameter: Φ52
◆Stroke: 41.4mm (Stock)
◆Piston: Forged (Made in Japan)
◆Aluminum cast iron sleeve cylinder
◆With head (valve already assembled)
Weight: 3200g
Vertical: 350mm
Width: 185mm
Height: 180mm
[Recommended products to be installed simultaneously]
Oil cooler kit, reinforced oil pump, reinforced clutch kit, reinforced stud bolts
Recommended carburetor: Mikuni VM26
Recommended Oil: Shell ADVANCE 4T ULTRA 10W-40

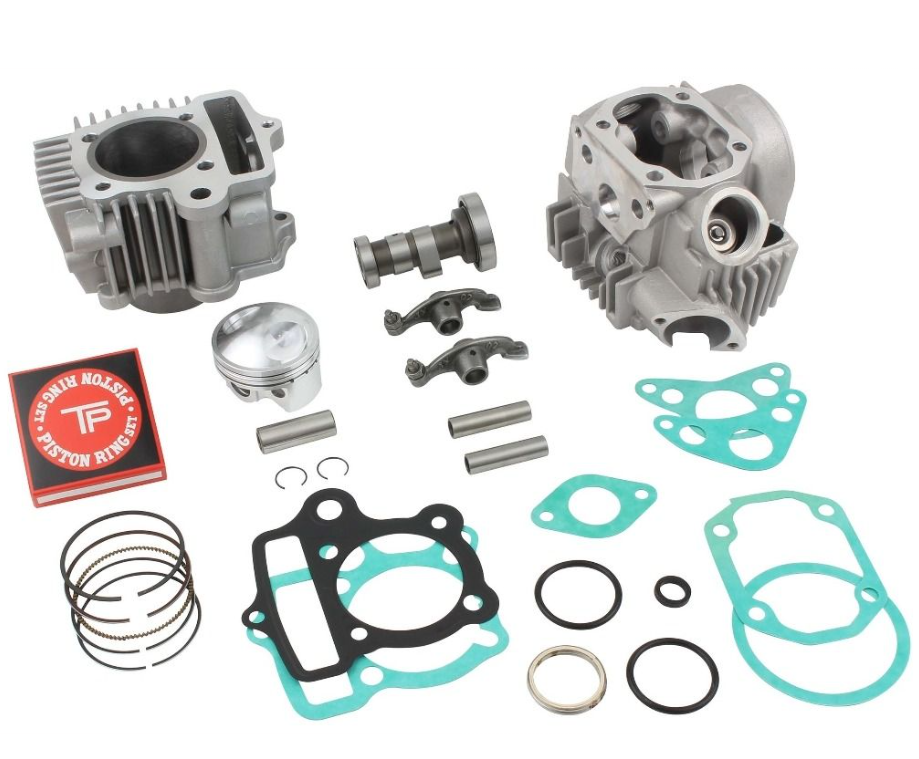

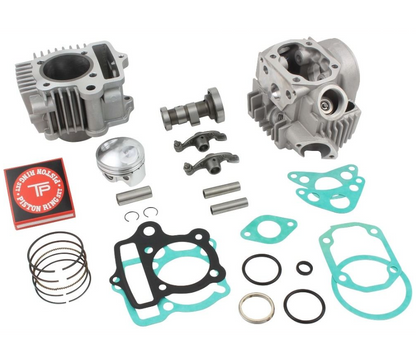

[Big Bore Kit Contents]

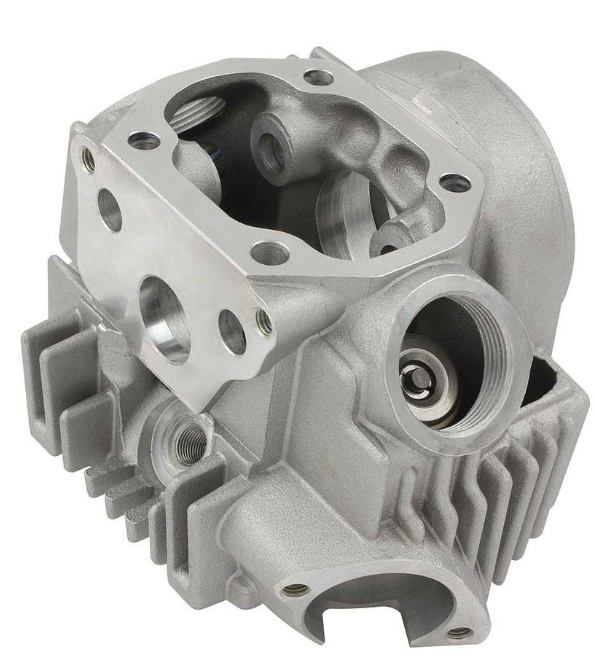

215588-CH:Monkey 88/110cc High Revolution Cylinder Head Type 2

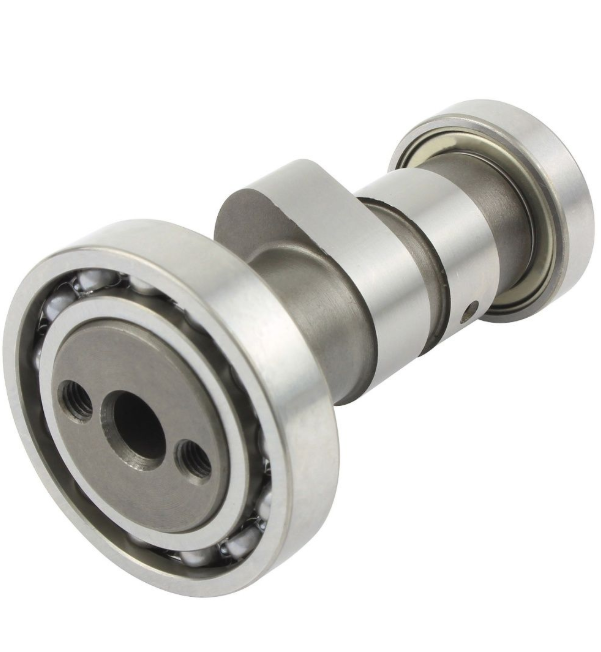

205588-CA-10:Camshaft for Monkey High Revolution Head

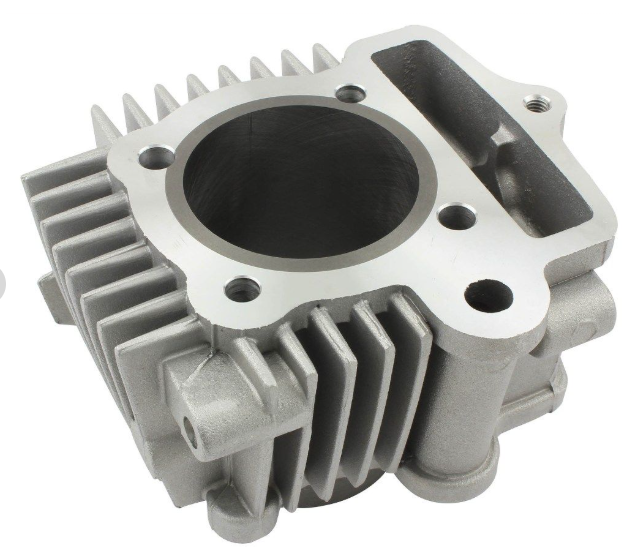

205088-CL-10:Monkey 88/110cc 52mm Cylinder
215588-PK:12V Monkey 88/110cc 52mm Forged Piston Kit Type 2 For HR Head
[215588-PK:Piston Kit Contents]

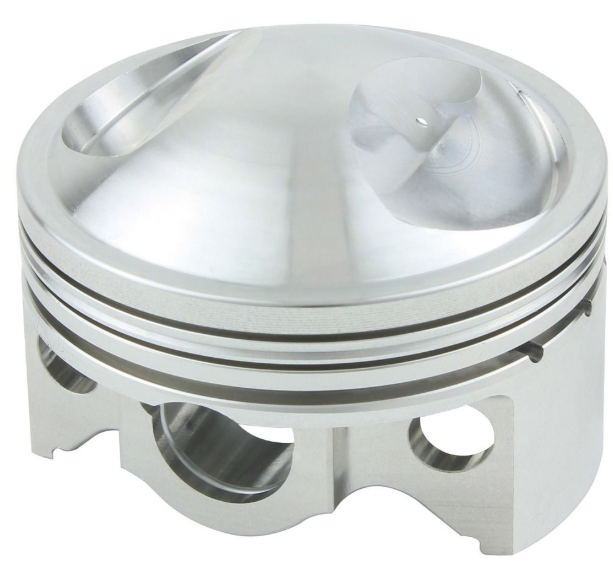

215588-PN:12V Monkey 88/110cc 52mm Forged Piston Type 2 Single Unit For HR Head
205088-RN:52mm Piston Ring (3-ring specification)
200580-PC:13 x 36 Piston Pin Set
205088-GA-10:Monkey 88/110cc Steel Gasket Set
[Steel Gasket Set Contents]
Exhaust gasket, manifold gasket, head gasket, base gasket
Head cover gasket, cam cover gasket, oil pump gasket, O-rings
High-power big bore kit for even more performance.
Original pistons are machined from a special forged round material.
The material, and more even stress distribution, offers excellent durability.
Highly accurate and reliable TP piston rings.
High range camshaft included to support high exhaust efficiency from low to high speeds.
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
