Hyper S Stage Big bore Kit 88 cc Product # 01-05-0099
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail
88cc
[Package Size]
・Height: Approx.273mm
・Width: Approx.186mm
・Depth: Approx. 130mm
[Material]
・Cylinder: Ceramic plated aluminum

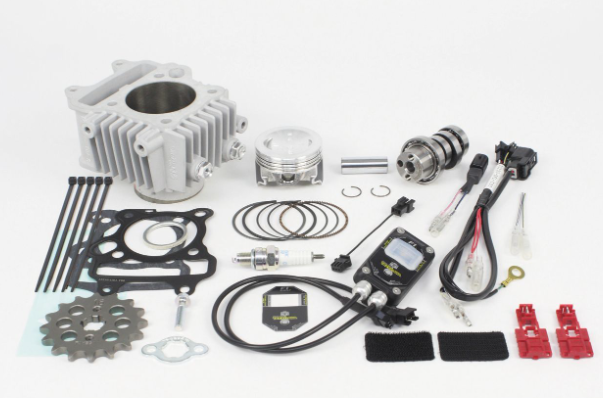

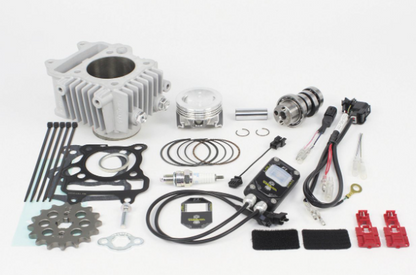

[Component]
・FI Controller 2 (Injection Controller)
・Drive sprocket 16T
・Spark plug (NGK-CR8HSA)
・Oil plug bolt

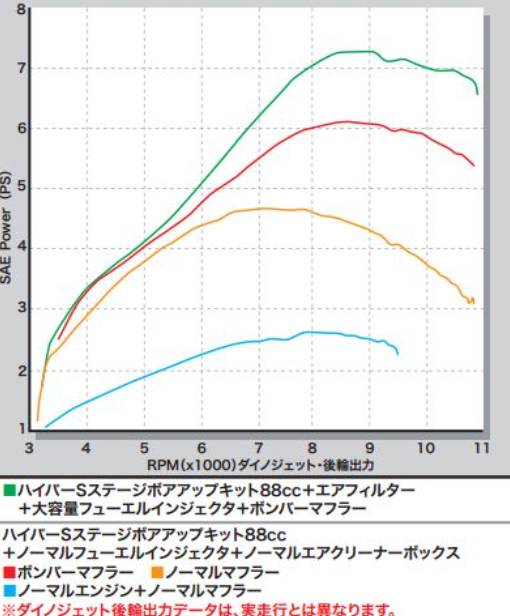

The "Hyper S Stage Big Bore Kit" delivers a completely different engine output and torquey driving performance than the stock engine
■Details
By using the stock cylinder head, the displacement can be increased to 88cc by changing the cylinder and piston.

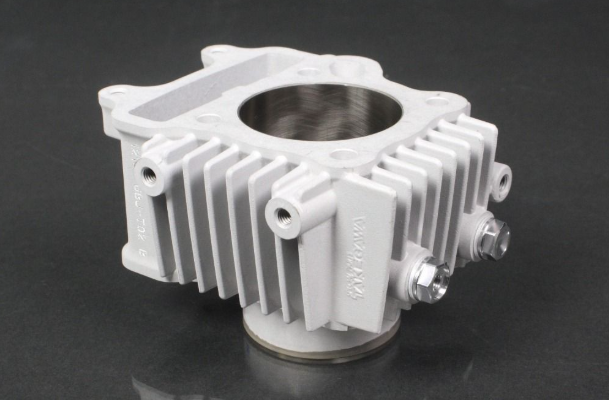

The cylinder is an all aluminum ceramic cylinder with excellent durability, airtightness and heat dissipation.

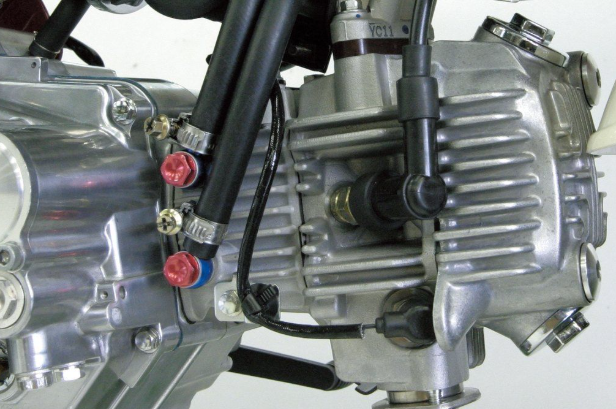

Furthermore, the cylinder is equipped with an oil outlet to allow oil to be taken out to the oil cooler.

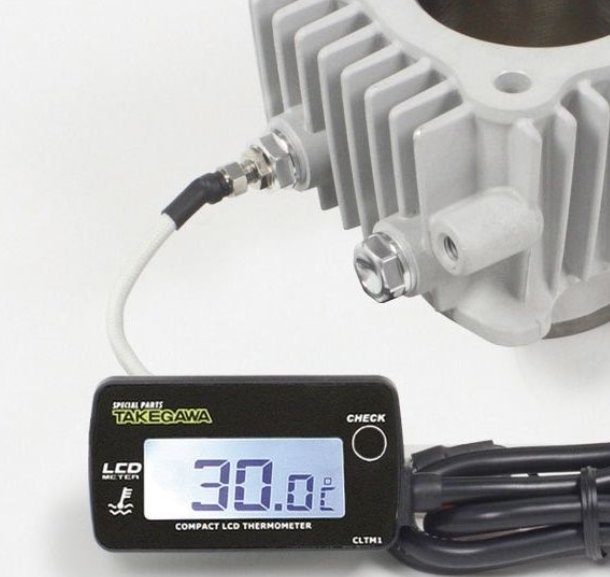

The M5 temperature sensor can be attached to the attached oil plug bolt, so if you do not remove the oil, you can measure the cylinder temperature by purchasing SP Takegawa's compact LCD thermometer with M5 temperature sensor.
Piston: The piston skirt is coated with molybdenum to ensure good initial adhesion to the cylinder.
Sport Camshaft: This camshaft is designed to maximize the performance of the stock cylinder head.
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
