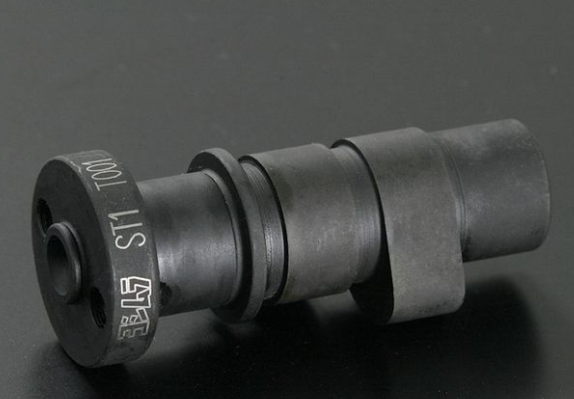

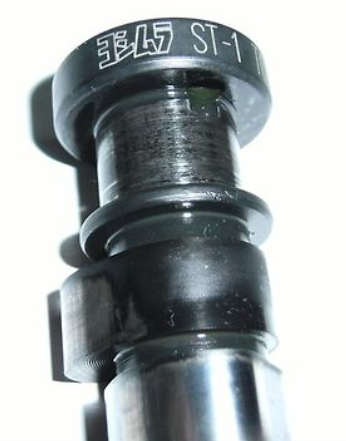

Camshaft [ST-1] Product # 211-406-0101

Name: Camshaft [ST-1] Product # 211-406-0101
Brand: Jpi motor
SKU: 42087088816210
Price: 16300.0 JPY
Availability: InStock

¥16,300

Tax included. Shipping calculated at checkout.

The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.

Product variants

Hurry Up! Only 3 items left in stock!

Sku:

N/A

Availability:

In stock

Vendor:

Jpi motor

Category:

NEW ARRIVALS

Product detail

[APE100/XR100 MOTARD]
Type: ST-1
MAX LIFT(mm):IN 6.40mm/EX 6.50mm
1mm DURATION(degree):IN 228.0 degrees / EX 232.0 degrees
Standard tappet clearance :IN 0.10/EX 0.10

[APE50/XR50 MOTARD]
Type: ST-1
MAX LIFT(mm):IN 6.35/EX 6.45
1mm DURATION(degree):IN 224.0/EX 230.2
Standard tappet clearance :IN 0.10/EX 0.10

By using an all-machining method, we have succeeded in achieving high wear resistance and a weight reduction of 5% compared to STD, while increasing the maximum lift.
APE100 with Yoshimura Full Kit (ST-1 cam + Yoshimura Cyclone + TM-MJN24 carburetor) achieved more than 180% improvement compared to the stock.The performance curve of horsepower and torque from low to high rpm is much better than STD.(Depending on the vehicle, it may be necessary to cut the cam holder slightly.)

Points of Attention

* If there may be an instruction manual included, it will be written in Japanese.
