Machined aluminum rear shock absorber (with ride height and damping adjustment) Product # 06-04-0040
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail
Ride height and damping adjustment

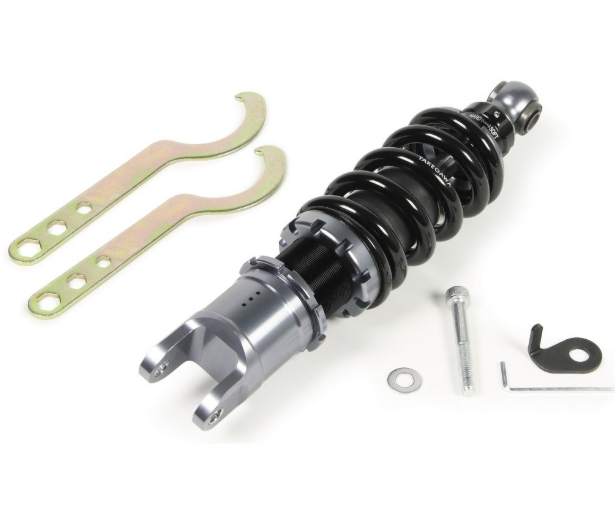

This is a machined aluminum rear shock absorber with set load adjustment, ride height adjustment and damping force adjustment for a wide range of applications from street driving to circuit driving.
The body is made of machined aluminum and anodized for superior corrosion resistance.
Gunmetal anodized body with black painted springs.

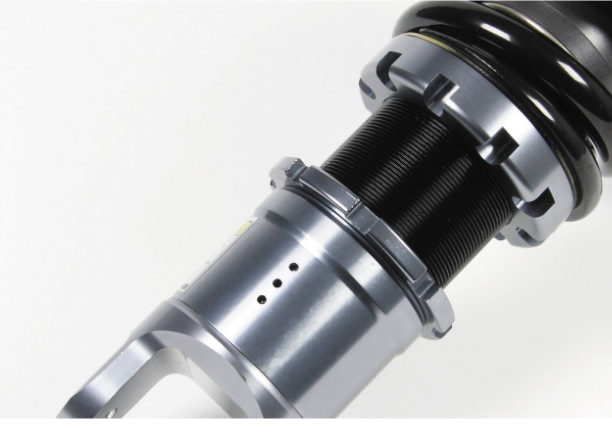

β Ride Height Adjustment
The total length of the shock is 265mm -275mm (mounting pitch), and the travel is infinitely adjustable by 10mm.With a notch adjustment function that transmits a feeling every 2.5mm to guide the amount of movement
β Set load adjustment
Adjustable within a range of 10mm.Adopts a split-fastening type adjusting nut that does not require a lock nut.Smooth adjustment is possible by installing nylon washers in the upper and lower seat of the spring.

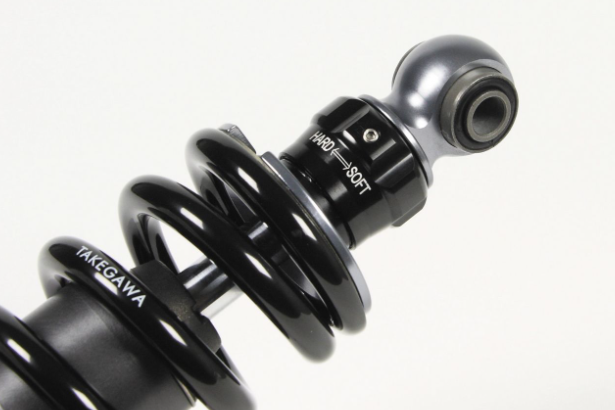

β Damping force adjustment
18-way adjustment on the elongation side
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
