KYB36Z Front Fork Product # 74-721
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail
[Color]
Silver (Hairline finish)
[Size]
Inner tube diameter: 36mm
Free Length: 775mm
Stroke: 140mm
Spring rate: 0. 6-0. 85kgf / mm Dual rate
Caliper Mount Pitch: 53.3mm
.

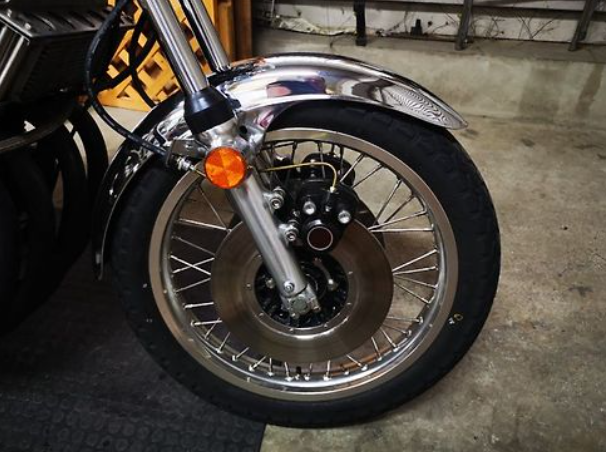

The year is 1970.Based on the world's best Z1 production plan, Kayaba Industry has completed a suspension system that is the most important security component in a different dimension next to the engine itself.
After almost half a century of joint development with Kayaba Industries, we have released a complete revival of the Z1 / Z2 specific front fork, with everything from the manufacturing process to the materials newly designed while faithfully reproducing the basic design.
Despite the appearance reminiscent of the early '72 forks, the damping characteristics are based on the original data and have evolved into a high-precision fine tune fork that maximizes the grip of all tires, from bias to the latest radials, by giving them a supple, sticky back.
βInner tube
Ξ¦36mm but with the high rigidity of high-tech super steel.
In addition, the high precision of the hard chrome plating film and the addition of the slide metal provide outstanding movement performance.

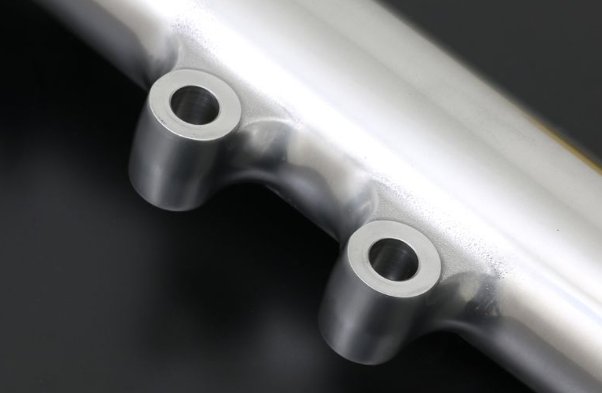

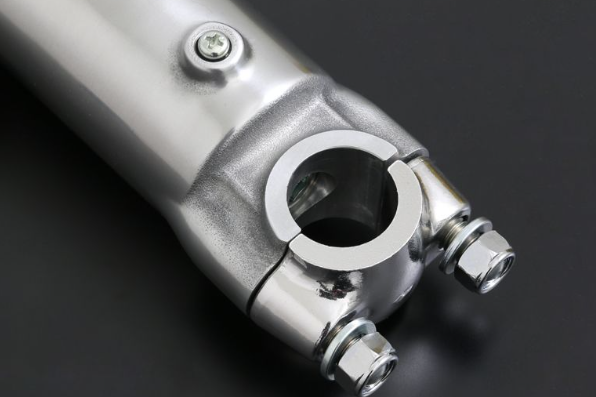

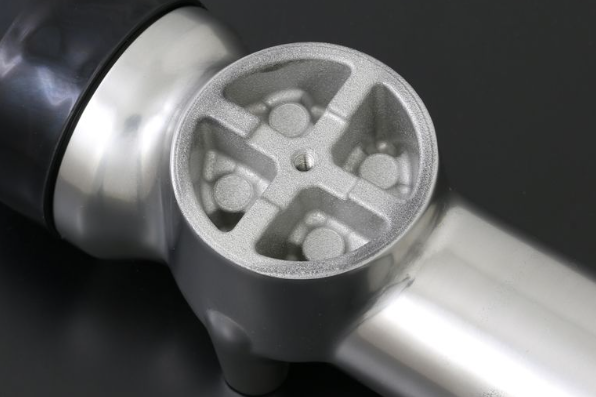

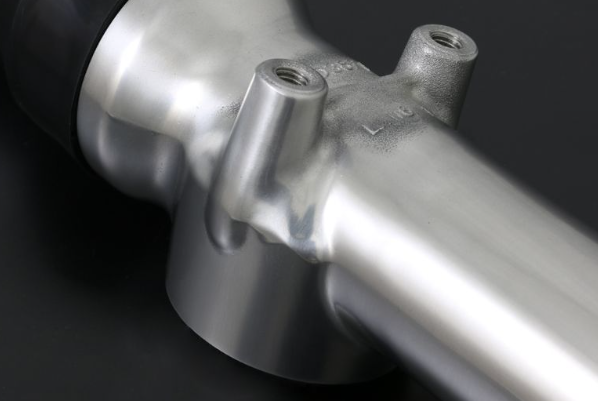

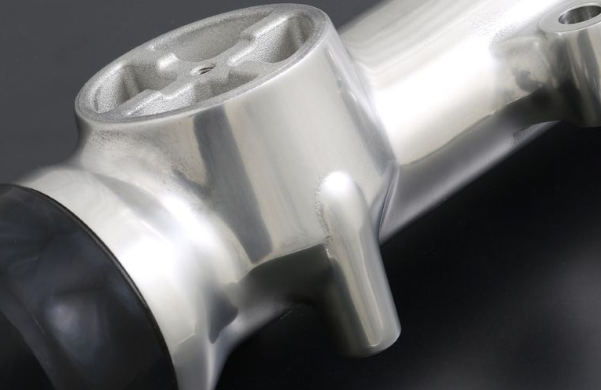

βOuter Tube
The high-density aluminum case has been revived by the pressurized vacuum casting method, realizing an amazingly high rigidity.
The slide metal is also added to the outer tube side to reduce the surface frictional resistance with the inner tube, promising a stable stroke in a high dimension.
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
