Core Body of Universal Straight Oil Cooler Product # 51-09365-01-6
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail

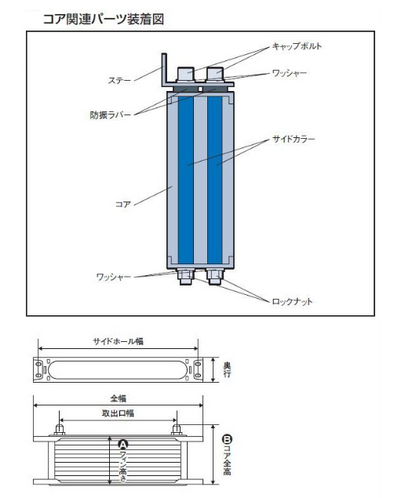

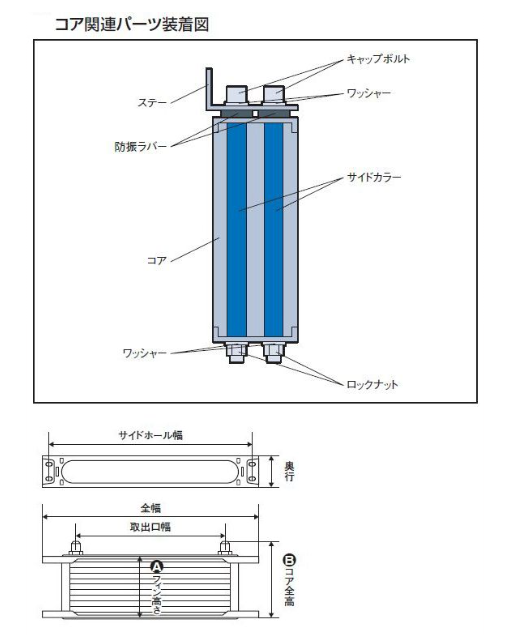

[Size]
■#6 4.5" 10 steps
(Fin height 76mm, Core height 97mm, Overall width 210mm, Outlet width 130mm, Side hole width 190mm, Depth 50mm)
■#6 4.5" 13 steps
(Fin height 100mm, Core height 120mm, Overall width 210mm, Outlet width 130mm, Side hole width 190mm, Depth 50mm)
■#6 4.5" 16 steps
(Fin height 123mm, Core height 145mm, Overall width 210mm, Outlet width 130mm, Side hole width 190mm, Depth 50mm)
■#6 4.5" 7 steps
(Fin height 52mm, Core height 73mm, Overall width 210mm, Outlet width 130mm, Side hole width 190mm, Depth 50mm)
■#6 9" 10 steps
(Fin height 76mm, Core height 97mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#6 9" 13 steps
(Fin height 100mm, Core height 120mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#6 9" 16 steps
(Fin height 123mm, Core height 145mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#6 9" 7 step
(Fin height 52mm, Core height 60mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#6 9" 7 step
(Fin height 52mm, Core height 73mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#8 12" 13 steps
(Fin height 100mm, Core height 120mm, Overall width 405mm, Outlet width 327mm, Side hole width 388mm, Depth 50mm)
■#8 4.5" 10 steps
(Fin height 76mm, Core height 97mm, Overall width 210mm, Outlet width 130mm, Side hole width 190mm, Depth 50mm)
■#8 9" 10 steps
(Fin height 76mm, Core height 97mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#8 9" 13 steps
(Fin height 100mm, Core height 120mm, Overall width 330mm, Outlet width 250mm, Side hole width 310mm, Depth 50mm)
■#6 12" 13 steps
(Fin height 100mm, Core height 120mm, Overall width 405mm, Outlet width 327mm, Side hole width 388mm, Depth 50mm)
**Use in combination with brakcet and side collar.
*Size: #6 9" 7-way (core height 60mm) has a female type (M12 x P1.5) outlet.Used in combination with banjo type extraction and banjo bolt..
* The image is only for reference. The image shown may differ from the actual product.

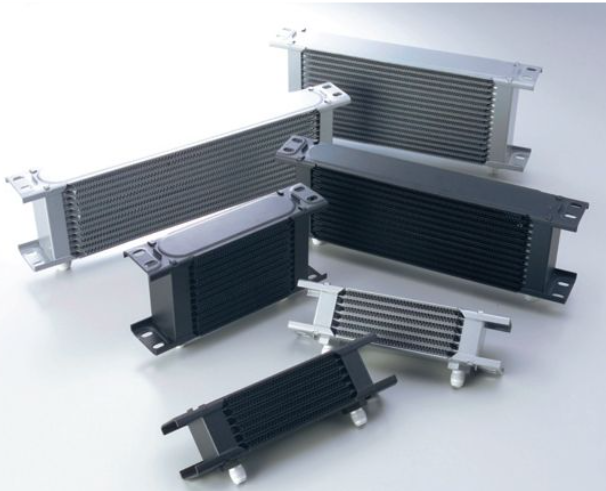

This is a universal oil cooler core only.
This kit can be used as a material for repair or for making an oil cooler kit for a vehicle that does not have a specific kit.
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
