Original Oil Cooler Kit, 8-Row Core, Head Bottom Mount, with Fitting Product # 216247-61
The 26x11-12 6PR ATV/UTV tire with dynamic tread pattern provides exceptional acceleration and traction. Versatile tread patterns perform well in soft to hard pack conditions. Lug design provides better braking control. Heavy 6 ply rated nylon construction resists punctures and abrasions. Tires only, wheels are not included.
Hurry Up! Only 3 items left in stock!
Copy link:
Share:
Ask a question
Product detail

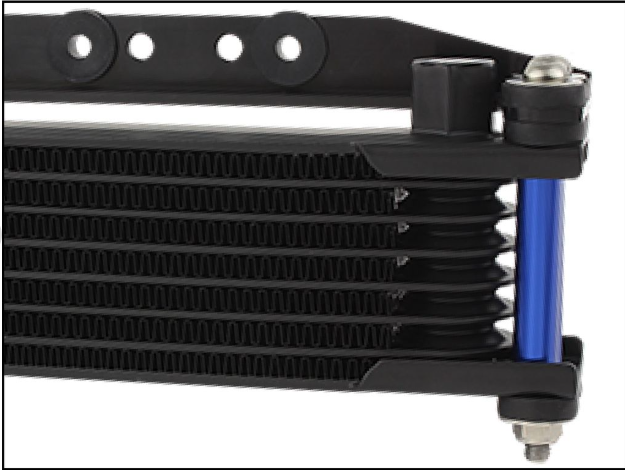

◆Core: 8-row black core

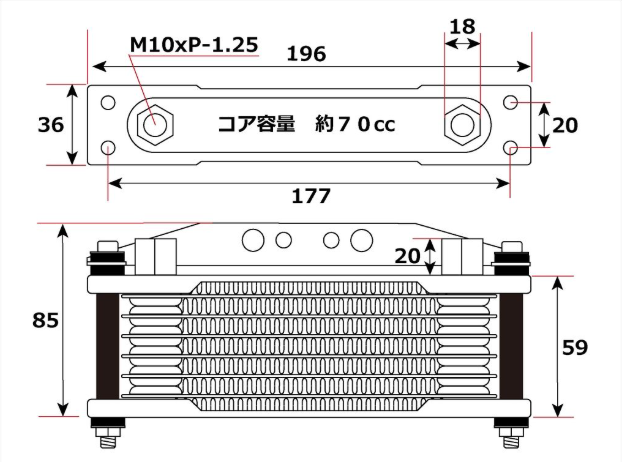

◆Capacity: 70cc
◆Head bottom mount type
[Parts that can be used together]
SHIFT UP Billet Head Cover (401001-03/04/09/11)
SHIFT UP Billet Cam Cover (205003-03/04/09/11)

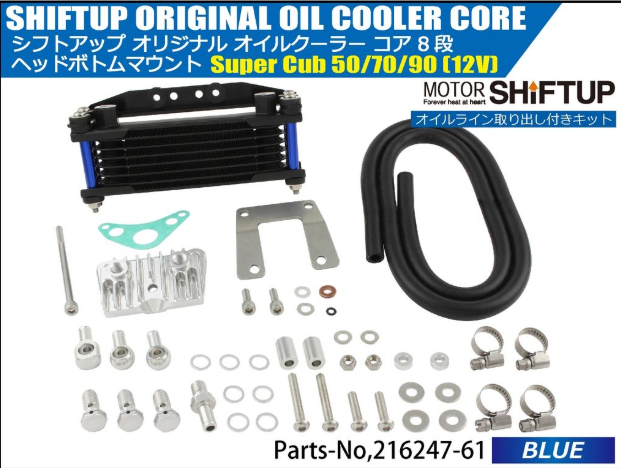

[Kit Contents]
1. Original oil cooler core set: 1 pc.
2. Oil resistant rubber hose 1m (inner diameter 8mm): 1 pc.
3. Machined aluminum oil cooler fitting: 1 pc.
4. Oil nozzle, 8.5mm: 1 pc.
5. Banjo union (for fitting): 2pcs.
6. Banjo union (for oil cooler): 1 pc.
7. Banjo gasket: 7 sheets
8. Banjo bolt P-1.25 (S): 3 pieces
9. Side cover gasket (for fitting): 1 sheet
10. Aluminum gasket (M6): 1 sheet
11. One M6 copper washer
12. Stainless steel band 10mm-16mm: 4 pieces
13. O-ring P-4: 1 pc.
14. Oil cooler bracket: 1 pc.
15. M6 x 18 cap bolt (stainless steel): 2 pcs.
16. M6 x 25 button cap bolt (stainless steel): 2 pcs.
17. M6 x 40 button cap bolt (stainless steel): 2 pcs.
18. M6 x 105 cap bolt (stainless steel): 1 pc.
19. M6 flat washer (stainless steel): 3 pieces
20. M6 flat washer, large (stainless steel): 4 sheets
21. M6 lock nut (stainless steel): 2pcs.
22. Aluminum collar M6 x 5t (for 90 engines): 2pcs.
23. Aluminum collar M6 x 20t (for 50/70 engines): 2pcs.
**Since the oil path is increased, be sure to use a reinforced oil pump.
*Be cautious regarding stud bolts.
*This kit is the type that attaches a bracket to the lower part of the cylinder head.
*Since it is attached with the cylinder head bolt, it is necessary to replace the bolts with long type bolts such as SHIFT UP’s reinforced stud bolts.
*SHIFT UP has not confirmed compatibility with any aftermarket parts other than the SHIFT UP and stock parts mentioned above.
*Compatible cylinder heads are for SHIFT UP 88cc/110cc-equipped bikes, or 50cc stock cylinder heads (limited to 12V engines) only.
*Depending on the installed tire size and bike height, there is a possibility that the tires and oil cooler may interfere with each other when the suspension bottoms out.Please check the interference before riding, and if it seems like it will interfere, or if it does interfere, please change to a tire with a smaller outer diameter or extend the forks, and make adjustments so that the tire and oil cooler are separated from each other.
*Only for 12V bikes.

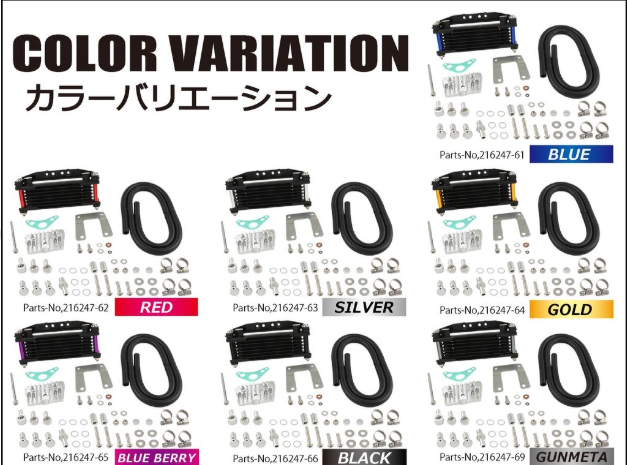

*Image may include other coloring and products.
*There may be changes in product specifications due to the manufacturer's reasons.
.
The SHIFT UP Original Oil Cooler Core is now available with new specifications!!!
The oil capacity is 70cc, the same as the previous model, ensuring sufficient oil capacity.
Points of Attention
* If there may be an instruction manual included, it will be written in Japanese.
